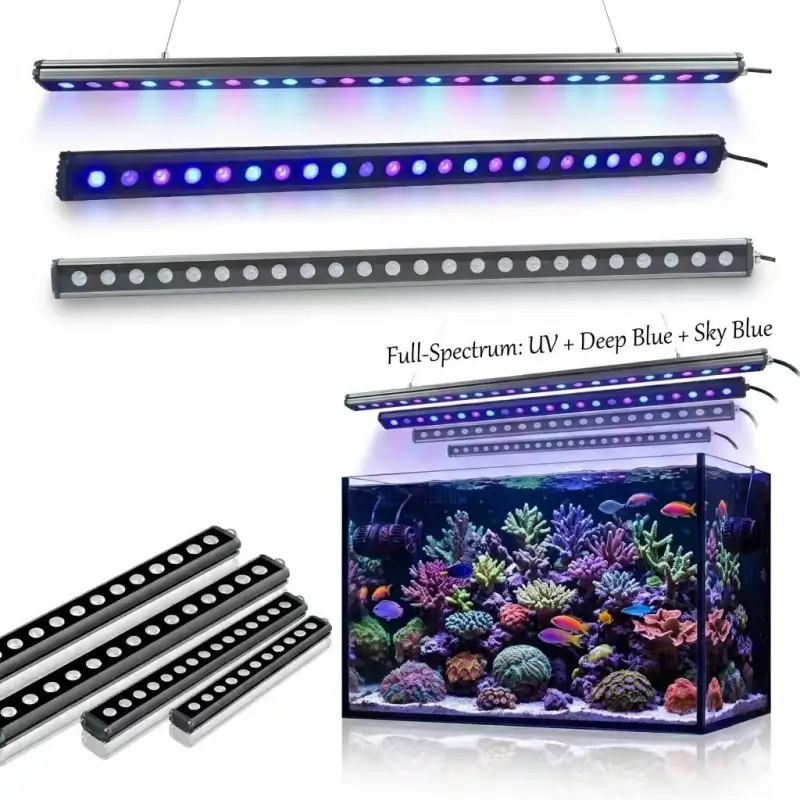

Professional Reef LED Aquarium Light Manufacturer | FOOVV
| Model Number | Bar Length | LED Quantity | Max Power Output | Ideal Coverage | Dimming Compatibility |
|---|---|---|---|---|---|
| FOOVV-LQ024 | 24 Inch (600 mm) | 18 PCS | 35W ± 5% | 24″ x 12″ Coral Tanks | Knob Dimmer / Timer/PWM 0-10V |
| FOOVV-LQ036 | 36 Inch (900 mm) | 24 PCS | 50W ± 5% | 36″ x 12″ Coral Tanks | Knob Dimmer / Timer/PWM 0-10V |
| FOOVV-LQ048 | 48 Inch (1200 mm) | 36 PCS | 65W ± 5% | 48″ x 12″ Coral Tanks | Knob Dimmer / Timer/PWM 0-10V |
| FOOVV-LQ060 | 60 Inch (1500 mm) | 48 PCS | 80W ± 5% | 60″ x 12″ Coral Tanks | Knob Dimmer / Timer/PWM 0-10V |
| FOOVV-LQ072 | 72 Inch (1800 mm) | 60 PCS | 95W ± 5% | 72″ x 12″ Coral Tanks | Knob Dimmer /Timer/ PWM 0-10V |
⚡ High-Performance Engineering Features
🔬 6W Dual-Chip 45mil LED Matrix: Peak Coral Vitality
Moving beyond standard lower-wattage LEDs, FOOVV utilizes custom-engineered 6W dual-chip 45mil LEDs. Operating within a critical wavelength spectrum of 380nm to 485nm (spanning True UV, Violet, and Royal Blue) alongside versatile color temperatures from 2000K to 20000K, this architecture significantly boosts photosynthetic usable radiation (PUR). It accelerates calcification in hard corals (SPS), enhances coloration in plush soft corals (LPS), and substantially extends the functional lifespan of the diode matrix.
📐 Precision-Engineered Lenses: Uniform PAR Distribution
Our custom-engineered optical lenses—available in 60°, 90°, and 120° beam angles—are designed to eliminate harsh hotspots and inefficient dark zones. By focusing the light path precisely, these collimators maximize deep-water PAR penetration. This creates a beautifully blended light field, delivering identical spectral energy to both central and peripheral coral colonies, encouraging a thriving, uniform reef canopy.
🤫 6063 Heavy-Duty Aluminum & Fanless Silent Thermal System
To withstand corrosive, high-humidity marine environments, the led reef light bar features a chassis sculpted from high-grade 6063 aluminum, enhanced by a patented IP65 waterproof seal and an anti-oxidation, UV-resistant coating. Leveraging a highly efficient passive cooling structure, heat is dissipated seamlessly without noisy, failure-prone mechanical fans. Zero noise, zero vibration, and maximum resistance against aggressive salt spray ensure continuous, decay-free performance year after year.
📦 Industrial Dimming Compatibility & Scalable Sizing
Built for versatile commercial setups, choose between our user-friendly onboard rotary dimming knobs or an upgraded, industry-standard Mean Well power driver supporting advanced PWM 0-10V automated controller group dimming. In addition to our 5 standard commercial lengths on the market, FOOVV provides fully tailored, scalable length customization and custom spectrum services to meet the precise requirements of specific public aquariums and commercial aquaculture facilities.
🤝 Commercial B2B Commitments
- OEM/ODM & Custom Sizing: Tailored lengths, specific spectrum adjustments, and private labeling options are available to align with your brand portfolio or large-scale project blueprints.
- 2-Year Zero-Hassle Warranty: Time is money for businesses. If a component failure occurs within 2 years under normal operations, FOOVV ships out a brand-new replacement unit immediately. No tedious return-for-repair cycles required.

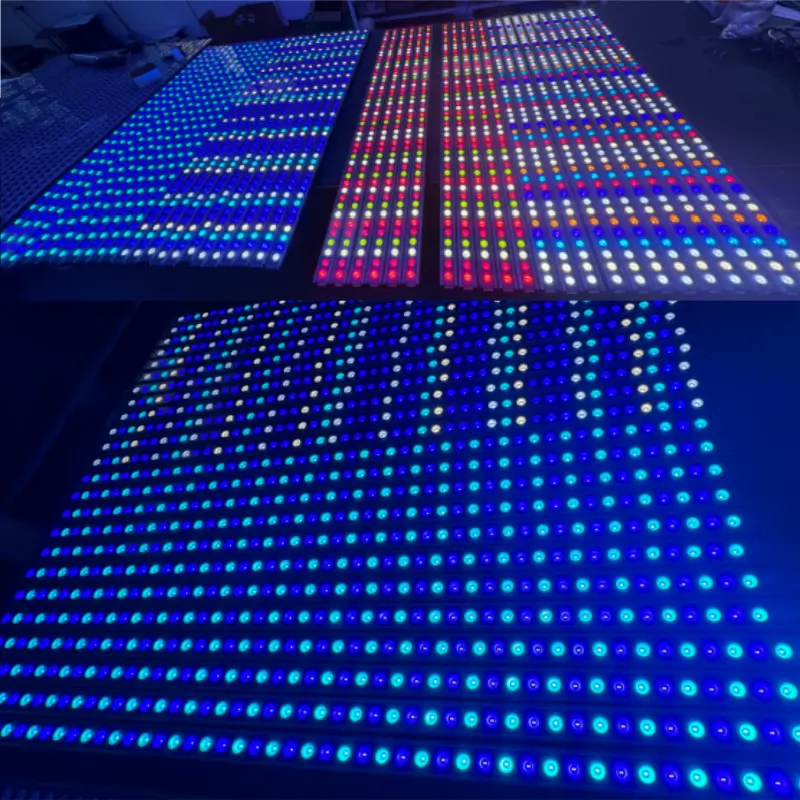

- 100% Factory Burn-In Verified: Every light bar undergoes an intense, multi-hour electrical stress and full-load thermal burn-in test at our facility, ensuring absolute stability before international dispatch.
❓ Commercial LED Reef Light Bar Purchasing FAQ
Q1: What is the optimal height to mount the FOOVV led reef light bar…`
A: For standard marine aquariums, we recommend suspending or mounting the bar light 6 to 10 inches (15-25 cm) above the water surface. This range ensures optimal PAR penetration while allowing the custom-engineered lenses to seamlessly blend the spectrum across the entire coral colony matrix without creating localized hotspots.
Q2: Can this led reef light bar be integrated with standard commercial aquarium controllers?
A: Yes, absolutely. When opting for our commercial configuration featuring Mean Well drivers, the system fully supports the standard PWM 0-10V dimming protocol. This allows seamless daisy-chaining and integration with popular industrial controllers and apex management systems for automated sunrise and sunset scheduling.
Q3: What is the minimum order quantity (MOQ) for custom spectrum or private label OEM orders?
A: As a production and sales integrated enterprise, FOOVV supports growing wholesale brands. Standard configurations have zero strict MOQs, while custom length sizing, specialized coral coloration spectrum matrices, and custom corporate logo laser-engraving typically start at an MOQ of 100 units per batch. Please contact Amanda@foovv.com for direct factory contract pricing.
